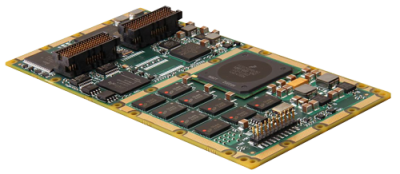

XMC-109 XMC SBC with NXP Power Architecture P2020 Processor
NXP Power Architecture QorIQ P2020 processor up to 1.2 GHz (can be ordered with a P2010 processor or be configured by the user to run at 800 MHz/600 MT/sec
Memory:
Up to 8 GB in one bank of DDR3 memory/ECC at 800 MHz
(1) bank NOR flash – 256 MB
512 KB Non-Volatile Memory (FRAM)
Optional 8 GB NAND flash
I/O:
(2) 10/100/1000BASE-T Ethernet ports (1000BASE-X capable)
(2) RS-232/422 asynchronous serial channels
(1) USB 2.0 host port
(1) SATA channel
(4) LVTTL DIO
Software
VxWorks BSP 6.9 and Driver Suite
Curtiss-Wright WindRiver Linux 4.3
Comprehensive foundation firmware (U-Boot including BIT, non-volatile memory programmer, and secure erase utility)
Additional Features
Designed for harsh environment applications, both air- and conduction-cooled
Designed to the VITA 42 specifications with the fabric on PN5 and all I/O on PN6.
All major I/O on PN6 is pinned out to fit within the VITA 46.9 X8d+X12d/X12d+X8d mapping so that it can be supported on a XMC site supporting 20 differential pairs
