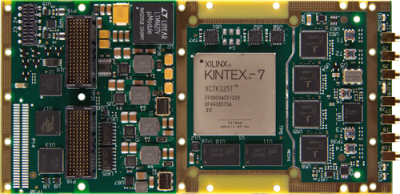

XF07-518 Quad 500MSPS 14b Kintex-7 Digital Receiver XMC
4x 500MSPS 14-bit analog input
Trigger in/trigger out
160-500MHz external sample clock input
Onboard programmable sample clock generator
User programmable Xilinx Kintex-7 K325T (-2) FPGA
PMC P14 digital IO: 32-differential digital IO pairs (LVDS+RS485)
XMC P16 digital IO: 20 differential pairs + 38 single ended digital (LVDS+RS485)
Two banks of 128M x 16bit DDR3 SDRAM
1Gbit FLASH for FPGA configuration
VxWorks and Linux support
FusionXF support for VxWorks and Linux (contact factory for Windows)
XMC (x8 PCIe) format
Air-cooled (AC L0, AC L100) or Conduction-cooled (CC L200)
DDC options
