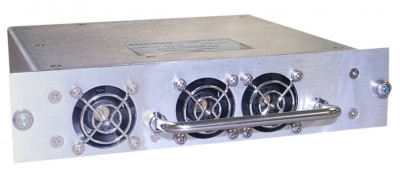

MODEL 94018-6
メーカー
Behlman Electronics
製品カテゴリ
電源
規格/フォームファクター
BOX
用途
防衛
INPUT
85-265 VAC, 47-440 Hz, Power Factor Corrected Input transient protection: per MIL-STD-704A
OUTPUT
1. 5.0 VDC @ 80 Amps
2. 3.3 VDC @ 45 Amps
3. +12 VDC @ 12 Amps
4. –12 VDC @ .83 Amps
・Load Regulation: 0.2% Maximum (0-100%)
・Line Regulation: 0.2% Maximum
・PARD-Ripple & Noise: 150 mV (0-10Mhz)
・Current Limit: Constant current limited to 120% of rated current.
・Over voltage: 120% Efficiency: 75%.
・Remote Sense: 5 V & 3.3 V can accommodate up to 0.5 V total drop.
・Remote turn on Over Temperature protection
・MIL-STD-461F MIL-STD-704F適合
