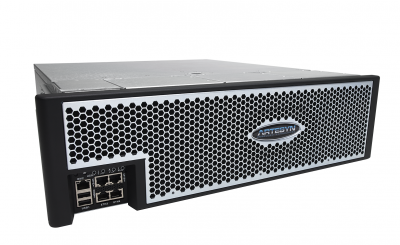

MaxCore™ Platform -Versatile and Dense Compute & Media Platform
・Dimensions: 3U by 508mm for 19” racks, option for rail mounting
・Cable-less internal architecture for SharpServer microserver
cards
・Optimal platform cooling with internal connectors for optionally
supplying additional power for PCI Express cards requiring more
than 75W
・15 PCI Express slots
・4x PCIe Gen3 x16 (each x16 link can be split into four x4 links)
・11x PCIe Gen3 x8 (each x8 link can be split into two x4 links)
・Full length PCI Express slots
・90 - 264VAC and -48VDC support
・2 + 1 redundant 2200W total for all slots with a maximum of up
to 150W per slot
・Non-redundant 3300W for all slots
・Hot swappable
・2x 10GBASE-T with SR-IOV support for shared usage between
multiple server cards
・2x USB, dynamically connected to active and standby system
host processors
・LEDs: Major/Minor/Critical alarms, SATA
・Switches/Buttons: Power, Reset, NMI
・Redundant fan blocks
・Hot swappable
・Front-to-rear cooling
・Air filter, replaceable
・4x 2.5” SATA hard-drive bays for use by system hosts
・BMC for remote platform management
・IPMI 2.0 support
・1x 1000Base-T and sideband access to two 10GBaseT ports
