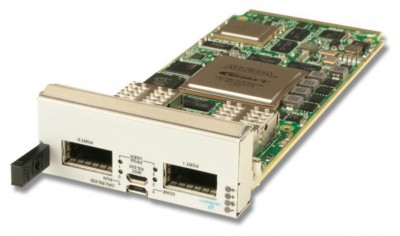

AMC534 – AMC Stratix V FPGA, 100G
メーカー
VadaTech
製品カテゴリ
FPGAモジュール
規格/フォームファクター
AdvancedMC
用途
物理 天体
・Altera Stratix V GT FPGA in FFG-1517 package
・Dual zQSFP+ ports to the front panel
・Front panel Port 0 at 100G, Port 1 at up to 40G
・AMC Ports 4-7 and 8-11 are routed to FPGA per AMC.1, AMC.2 and AMC.4 (protocols such as PCIe, SRIO, XAUI, XLAUI, etc. are FPGA programmable)
・On-board Freescale QorIQ PPC2040 with DDR3
・FPGA can load via Flash or via the P2040
・FPGA Flash can be programmed via the JTAG or the P2040
・IPMI 2.0 compliant
