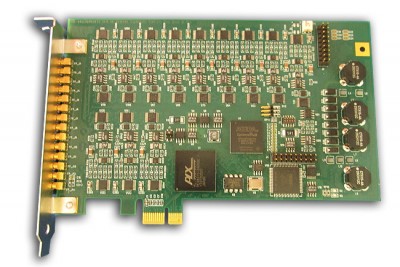

12 wide-range 24-Bit simultaneously-sampled analog input channels.
Supports IEPE (Integral Electronic Piezoelectric) transducers.
Software-controlled Constant Current IEPE excitation with +24 V compliance, Factory- configurable from 1-8 mA.
Precision DC and low-noise dynamic performance.
Software-selectable analog input ranges of ±10 mV, ±100 mV, ±1 V, ±10 V.
Input sample rates to 105 Kilosamples per second per channel.
Delta-Sigma input conversion minimizes or eliminates the need for antialias filtering.
MMCX coaxial connectors for 12 IEPE or voltage input channels.
Coaxial interface for external clock and sync I/O.
105dB dynamic range with no postfiltering.
Supports multiboard synchronization.
Software-selectable AC or DC input coupling.
AC low-frequency cutoff factory-configurable from 0.5-10 Hz.
256 K-sample analog input FIFO buffer.
Continuous and Triggered-Burst sampling modes.
On-demand internal offset and gain autocalibration of all analog inputs.
Call for availability in alternate form factors, including PCI and cPCI, as well as 8-channel versions for PC104-Plus, PCIe104-Plus and PMC form factors.
