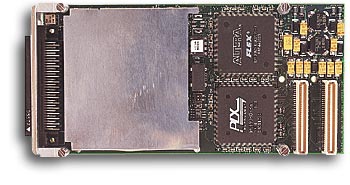

The 12AIO provides a cost effective high-speed 12-bit analog input/output and digital I/O board. Four analog output channels (at 300,000 samples/ sec per channel) are updated either synchronously or asynchronously, and support arbitrary waveform generation. The analog inputs are configurable as either 32 single-ended or 16 differential inputs, and can be scanned continuously or in bursts. Inputs and outputs have a common software selected range of ±10V, ±5V or ±2.5V, and are accessed through independent 32K-sample FIFO buffers. Internal auto-calibration networks permit calibration to be performed without removing the board from the system. Software controlled test configurations include a loop-back mode for monitoring all analog output channels.
